MOUNTAIN BIKING WITH A BOOST

BEYOND CAPABLE, BOTH UP AND DOWN, IN EVEN THE MOST CHALLENGING TERRAIN

MAXIMIZING FUN

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

Key upgrades from Alpine Trail E1:

Shimano STEPS EP8 system and 630Wh battery
Fox 38/Float DHX2 Performance Elite suspension
Shimano XT/SLX 12-speed drivetrain w/10-51t cassette
Shimano SLX 4-piston disc brakes
Deity Ridgeline bar/Copperhead stem

KEY UPGRADES FROM THE ALPINE TRAIL E1
Shimano STEPS EP801 system
Fox 38/Float DHX2 Performance Elite suspension
Shimano XT/SLX 12-speed drivetrain w/10-51t cassette
Shimano SLX 4-piston disc brakes

TECHNOLOGY

Detail image of Shimano STEPs battery on Alpine Trail E mountain bike

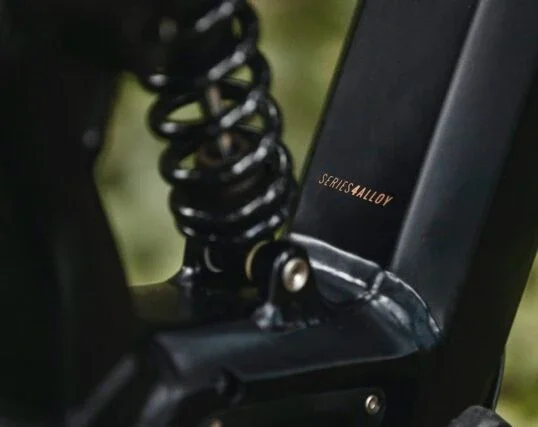

SERIES 4 ALUMINUM FRAME

Alpine Trail E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

Detail shot of Alpine Trail E2 rear shock

MULTITRAC SUSPENSION

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.

MIXED WHEEL SIZES

29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

Detail image of dropper post on Alpine Trail E

DROPPER POST OPTIMIZED

The modern day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, along with minimum insertion depths, so that riders of all sizes can get the proper extension needed.

SPECIFICATIONS
FRAME Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
SHOCK Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb
RIMS Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB REAR Shimano FH-TC500MSB, 148x12mm, Disc, MicroSpline Freehub Body
HUB FRONT Shimano FH-TC500, 110x15mm, Centerlock, 32H
SPOKES 14g Black Stainless Steel
TIRES Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
DERAILLEUR REAR Shimano XT 12-Speed, SGS
SHIFT LEVER Shimano SLX 12-Speed, I-Spec EV
CRANKSET Shimano XT M8150, 160mm Length, 38t Chainring
MOTOR Shimano Steps EP801 Drive Unit, 250W, 85Nm
CHAIN KMC E12S, eMTB-Specific Chain
CASSETTE SunRace, 12-Speed, Microspline, 10-51T
BRAKES FRONT Shimano SLX 4-piston Hydraulic Disc, 203mm rotor
BRAKES REAR Shimano SLX 4-piston Hydraulic Disc, 203mm rotor w/ speed sensor
BRAKE LEVERS Shimano SLX, I-Spec EV
HANDLEBAR Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS Marin Grizzly Lock On
HEADSET FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
SADDLE Marin eMTB Saddle
PEDALS Marin MTB Plastic
BATTERY BT-8036, Internal 630Wh
DISPLAY Shimano SC-E600
SWITCH SW-E7000 Left Hand Switch for Assist Mode Change
EXTRAS Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

Specifications, pricing, and availability are subject to change without notice.
