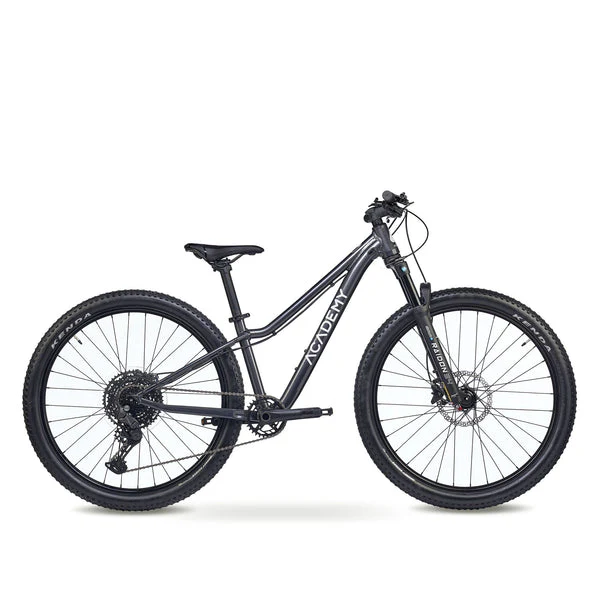

Academy Trail 7
Technical details
| Frame / Fork | |
| Frame shape | Diamond kink |
| Frame material | Triple Butted Aluminum |
| Frame height in cm | 33 |
| Fork | SR Suntour 27.5"SF25-RAIDON34X-BOOST, 15x110mm, 100mm Travel, 1 1/8 - 1.5", 44mm Offset |
| bottom bracket | Prowheel PW-BB73+/PW-BB92, 73mm |
| tax rate | Neco H373MS |
| derailleur hanger | |
| cockpit | |
| handlebar |
Aluminum 31.8mm, Width: 680mm, Backsweep: 9°, Upsweep: 6° |
| handles |
Bicycle |
| stem |
Aluminum 31.8mm, 60mm |
| braking system | |
| brake lever |
Shimano BL-UR405 short reach hydr. Disc |
| Front brake |
Shimano BR-MT410, 180mm rotor |
| Rear brake |
Shimano BR-MT410, 160mm rotor |
| drive | |
| Gearshift | 10-speed derailleur |
| gearshift lever | Shimano SL-U6050-10R, CUES, 9-S rapidfire, short reach |
| front derailleur | - |
| rear derailleur | Shimano RD-U6000, CUES, 10S |
| Chain / Belt | KMC X10 |
| cassette | Shimano CS-LG300-10, 11-48T |
| Crankset | Prowheel Charm-FD04S-TT 32T, 160mm |
| chain guard | - |
| Pedals | VP-537 110.5 x 102mm |
| wheels | |
| Tires | Kenda Honey Badger 27.5 x 2.20 (55-584) |
| Rims | Aluminum hollow chamber, 14G, 32 holes for disc |
| Front hub | 15 x 110mm, 14G, 32H |
| Rear hub | 14G, 32H, 12x142mm ThruAxle |
| spokes | 14G, black |
| saddle | |
| saddle |
DDK |
| seat post |
Aluminum 31.6 x 350mm |
| seat clamp |
35mm QR |
| lighting | |
| headlights |
- |
| rear light |
- |
| dynamo |
- |
| reflectors |
1x front reflector, 1x rear reflector, 4x spoke reflectors |
| Weight: |
12.7 KG |
| Maximum weight allowed: |
100 KG |
| RRP: |
999 € |
Technical details
| Frame / Fork | |
| Frame shape | Diamond kink |
| Frame material | Triple Butted Aluminum |
| Frame height in cm | 38 |
| Fork | SR Suntour 27.5"SF25-RAIDON34X-BOOST, 15x110mm, 100mm Travel, 1 1/8 - 1.5", 44mm Offset |
| bottom bracket | Prowheel PW-BB73+/PW-BB92, 73mm |
| tax rate | Neco H373MS |
| derailleur hanger | |
| cockpit | |
| handlebar |
Aluminum 31.8mm, Width: 680mm, Backsweep: 9°, Upsweep: 6° |
| handles |
Bicycle |
| stem |
Aluminum 31.8mm, 60mm |
| braking system | |
| brake lever |
Shimano BL-UR405 short reach hydr. disc |
| Front brake |
Shimano BR-MT410, 180mm rotor |
| Rear brake |
Shimano BR-MT410, 160mm rotor |
| drive | |
| Gearshift | 10-speed derailleur |
| gearshift lever | Shimano SL-U6050-10R, CUES, 9-S rapidfire, short reach |
| front derailleur | - |
| rear derailleur | Shimano RD-U6000, CUES, 10S |
| Chain / Belt | KMC X10 |
| cassette | Shimano CS-LG300-10, 11-48T |
| Crankset | Prowheel Charm-FD04S-TT 32T, 160mm |
| chain guard | - |
| Pedals | VP-537 110.5 x 102mm |
| wheels | |
| Tires | Kenda Honey Badger 27.5 x 2.20 (55-584) |
| Rims | Aluminum hollow chamber, 14G, 32 holes for disc |
| Front hub | 15 x 110mm, 14G, 32H |
| Rear hub | 14G, 32H, 12x142mm ThruAxle |
| spokes | 14G, black |
| saddle | |
| saddle |
DDK |
| seat post |
Aluminum 31.6 x 350mm |
| seat clamp |
35mm QR |
| lighting | |
| headlights |
- |
| rear light |
- |
| dynamo |
- |
| reflectors |
1x front reflector, 1x rear reflector, 4x spoke reflectors |
| Weight: |
12.7 KG |
| Maximum weight allowed: |
100 KG |
Select Color
Select Frame Size
From $304.61
Original: $870.32
-65%Academy Trail 7—
$870.32
$304.61More Images
