Cervelo Caledonia-5 SRAM Rival eTap AXS - 2023
LIGHTWEIGHT SPEED
Some might say aero doesn’t matter on a gravel bike, but if you’ve battled a headwind across an open prairie, the thirty-two grams of drag you’ll save with the Áspero-5 come as a welcome respite. Most gravel racing is done without the benefit of a World Tour peloton—or World Tour tactics—and when it’s your nose in the wind all day, it’s nice to know your bike’s shouldering a bit of the load.
TWO-POSITION ADJUSTMENT
Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures.
MULTIPLE CONFIGURATIONS
We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We (and the International Organization for Standardization, or ISO), always recommend 4mm of clearance between the tire and frame.

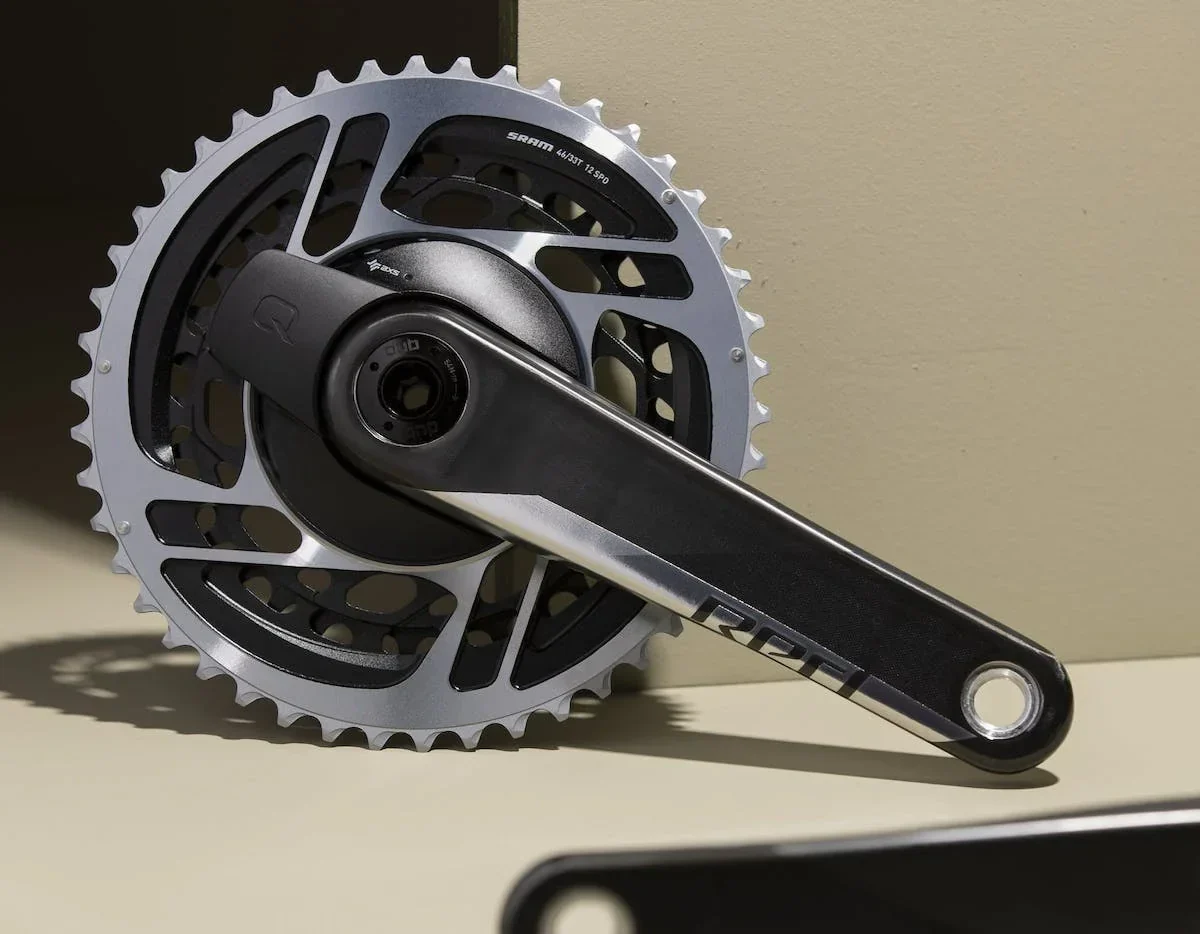

SRAM INTEGRATED POWER
Red and Force builds include Quarq Zero powermeters integrated into the crank. The integration of a powermeter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.
Specs
Build
Frame Carbon fiber
BB Standard: BBRight, 79mm, Press Fit
Colors: Five Black; Glacier
Fork Cervélo All-Carbon, Tapered Caledonia-5 Fork
Bottom Bracket SRAM DUB, BBright
Headset FSA IS2 1-1/4 x 1-1/2
Stem Cervélo ST32 Alloy
Handlebar Cervélo HB13 Carbon, 31.8mm clamp
Saddle Prologo Dimension STN
Seatpost Cervélo SP24 Carbon
Groupset
Rear Derailleur SRAM Rival AXS, 12 speed
Front Derailleur SRAM Rival AXS, 12 speed
Crank SRAM Rival, 48/35T, DUB
Shifters SRAM Rival AXS, 12 speed
Cassette SRAM Rival, 10-36, 12 Speed
Chain SRAM Rival, 12 speed
Brakes SRAM Rival
Type: SRAM Rival Hydraulic Disc
Wheels
Rims Fulcrum Racing 600 DB, 12x100(F)/142(R), 24H, 20mm IW, XDR freehub, centerlock, tubeless compatible
Tires Corsa N.EXT TLR G2.0 700x30c
GEOMETRY
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | mm | 370 | 379 | 388 | 397 | 406 | 415 |
| Stack | mm | 505 | 530 | 555 | 580 | 605 | 30 |
| Head Tube Angle | 71° | 71.5° | 72° | 72° | 72° | 72° |
| Front Center | mm | 583 | 592 | 602 | 619 | 637 | 654 |
| Bottom Bracket Drop | mm | 78.5 | 78.5 | 76 | 76 | 73.5 | 73.5 |
| Head Tube Length | mm | 83 | 107 | 133 | 159 | 188 | 214 |
| Top Tube Length | mm | 512 | 532 | 553 | 575 | 591 | 608 |
| Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Standover Height | mm | 690 | 732 | 764 | 788 | 814 | 838 |
| Trail | mm | 58.6(700C) / 58.1(650B) | 58.6(700C) / 58.1(650B) | 58.6(700C) / 58.1(650B) | 58.6(700C) / 58.1(650B) | 58.6(700C) / 58.1(650B) | 58.6(700C) / 58.1(650B) |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 52/57 | 49/54 | 46/51 | 46/51 | 46/51 | 46/51 |
| Wheelbase | mm | 990 | 1000 | 1010 | 1027 | 1046 | 1063 |
| Chainstay Length | mm | 420 | 420 | 420 | 420 | 420 | 420 |
SIZING
