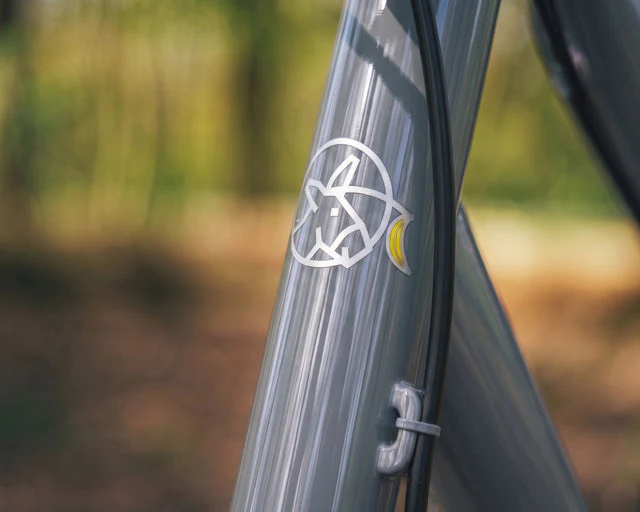

Ten07 Pony Frame Kit
HomeStore

Ten07 Pony Frame Kit

Ten07 Pony Frame Kit

Big utility, small footprint. The Pony is a fun-sized mini cargo velo built to make your everyday adventures even more fun. It delivers all the cargo practicality you need without the bulk, featuring:

  • A Nimble Ride: Incredibly agile handling that effortlessly dances through traffic and winding paths.

  • Universal Fit: A smart, one-size-fits-all geometry designed to comfortably accommodate any rider in your household.

  • Compact Design: A space-saving frame that’s just as easy to park at your favourite cafe as it is to ride.

Perfect for the urban rider who demands a beautiful daily commute, loves a spontaneous detour, and spends every weekend outside, rain or shine.



Feature list

  • Dynamo front light mount
  • Internal routing for dynamo through fork and left/right chainstay for front and rear lights
  • Internal dropper post routing
  • Internal front derailleur routing
  • Front wheel 20", rear wheel 24"
  • 3-pack mounts on fork and down tube for extra cargo
  • Standard + custom rack mounts
  • Belt drive compatible
  • Sliding dropouts (thru-axle or quick release)
  • Swappable thru-axle inserts on fork (12 → 15mm), with 100mm hub length
  • Double kickstand support



Rider height: 1.5m-2.0m tall

Maximum permissible payload: 50kg
Driver’s weight: 100kg
Total maximum load (payload + driver’s weight): 130kg



Frame dimensions

  • Standover height (A): 690mm
  • Reach (B): 360mm
  • Top tube length (effective) (C): 579mm
  • Seat tube length (D): 470mm
  • Seat tube angle (E): 70°
  • Head tube angle (F): 73°
  • Wheel base (G): 1004mm
  • Total length (H): 1544mm
  • Stack (I): 603mm
  • Rack dimension (J): 500mm
  • Rack dimension (K): 360mm



Frame

  • 25CrMo4 Butted steel tubes
  • Front wheel: 20”(406), 15x100mm thru axle (optional: 12x100mm), disc only
  • Front tyre clearance: maximum 70mm, 55mm with mudguards
  • Rear wheel: 24”(507), 12x142mm thru axle (optional: quick release), disc only
  • Rear tyre clearance: maximum 65mm, 55mm with mudguards
  • Seat post diameter: 31.6mm
  • Bottom bracket: BSA 68mm
  • Steering headset: 1 1/8”
  • Phospate-treated and ED coated

Fork

  • 25CrMo4 steel tubes
  • Fork headset: 1 1/8”
  • Steering tube length: 600mm
  • 3 bottle bosses each side for cargo load
  • Swappable thru-axle inserts (12 → 15mm)
  • Hub length: 100mm
  • Internal routing for dynamo cable
  • 2 Eyelashes for mudguards
  • Post-mount brake system compatible
  • Phospate-treated and ED coated

Rack

  • Aluminium 6061-T6
  • ED coated
