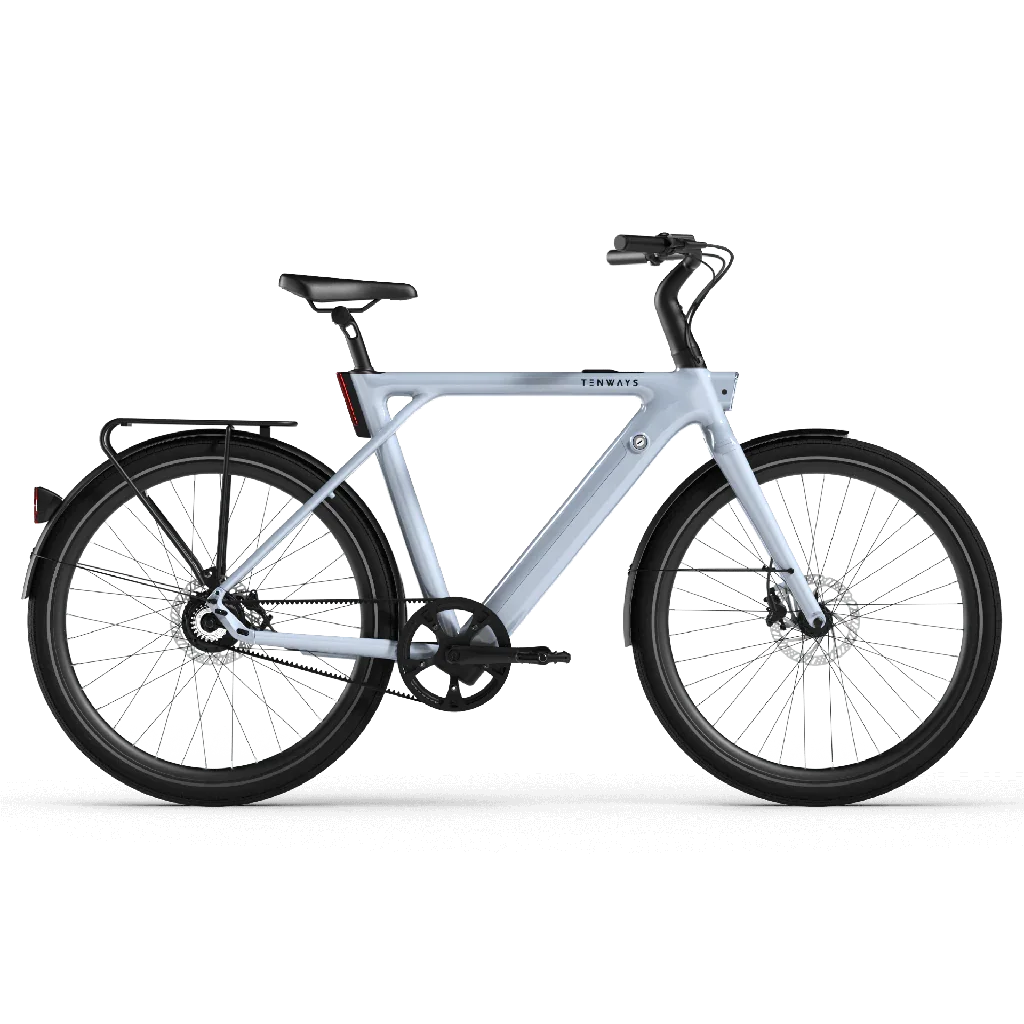

Tenways CGO009 Classic
 |
 |
|
Belt drive A drivetrain you can rely on. |
Integrated design Sleek and minimal design with integrated lights, so can pay all your attention to the road ahead. |
 |
 |
|
Minimalist dash controls Streamlined, refined, intuitive controls.Super-simplified for optimum ease. |
Go with the flow Torque Sensor offers intuitive assistance. |
 |
 |
|
Oh, So Secure A built-in Smart Connect module gives this eye-catcher extra protection against malicious intent. |
Connect for Smarter Riding Attach your smart phone to the stem with a handlebar mount and enjoy all the TENWAYS App functionality. |
ELECTRONICS
MotorTENWAYS C9 Hub Motor (250W Power, 45 Nm Torque)
Sensor
Torque Sensor
Display
TENWAYS Display with Boost Function
Battery
374 Wh (36V, 10.4Ah) Lithium-ion Battery with LG Cells
Controller
Vector Sine Wave Controller
PERFORMANCE
Top Speed25 km/h or 16 mph
Range
Up to 85 km
Climbing Ability
Suitable for moderate urban slopes
COMPONENTS
Frame6061 Aluminium Frame
Front Fork
6061 Aluminium Fork
Crankset
Gates CDX Crankset
Weight
Net weight: 21 kg (excluding all accessories)
Full weight: 23 kg (including all accessories)
Permissible Max. Weight: 145 kg
Net weight: 21 kg (excluding all accessories)
Full weight: 23 kg (including all accessories)
Permissible Max. Weight: 145 kg
Tires
TENWAYS Customized Tires
Drivetrain
Single-speed Drivetrain
Gates CDN Carbon Belt
Bottom Bracket
Sealed Bottom Bracket
Brake
Hydraulic Disc Brakes
Rear Rack
TENWAYS Customized Rear Carrier
TENWAYS Customized Rear Carrier
Saddle
Selle Royal Saddle
Selle Royal Saddle
Rear Carrier, Kickstand and Mud Guards are included in the package!
GEOMETRY
| One Size (mm) | SYMBOL | |
| Effective top tube | A | 634 |
| Seat tube length | B | 573 |
| Head tube | C | 150 |
| Steering angle | D | 68.5 |
| Seat tube angle | E | 71.7 |
| Chainstay | F | 474 |
| Wheelbase | G | 1172.9 |
| Standover | H | 852 |
