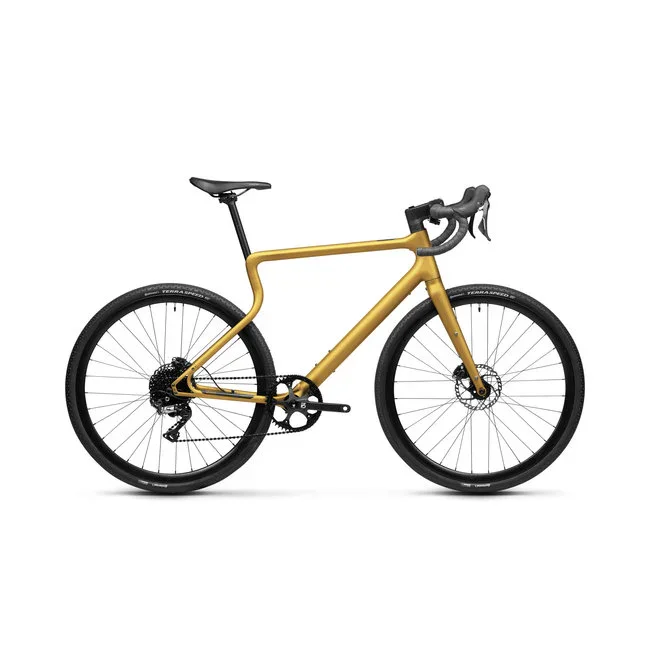

Urwahn Waldwiesel.E

With our innovative Waldwiesel, we have once again tasted metallurgical 3D printing in its entirety and are now making our comfortable soft-ride structure presentable off the tarmac.

Our adventurer is just craving for a wild ride in the open and guarantees progressive handling with direct propulsion. Designed for tough off-road conditions, the precisely tuned Shimano GRX 1-11-speed groupset converts every impulse into direct propulsion.

Bye-bye, pavement - hello, off-road adventure! The special wheelset takes up the challenge and relies on robust DT Swiss rim rings and spoke mesh, while the form-fitting steel frame just glides over rough terrain. And when the going gets rough: the Acros drop bar guarantees complete steering control with generous flair and ergonomic fit. One trial please!

This cream cut goes off like a rocket and will put a big grin on your face. What are you waiting for, book a test ride and get out into nature!

• FRAME Urwahn CT1-FR1 | CrMo steel | integrated beltport | integrated flatmount | internal cable routing
• FRONT LIGHT Optional: Supernova E3 Pure stem mount | StVZO compliant
• BACK LIGHT Optional: LightSKIN seat post with integrated rear light | StVZO compliant
• FORK Urwahn CT1-FS1 | tapered | integrated flatmount | internal cable routing
• HEADSET Acros AIX-525 IS | internal cable routing | fully integrated
• BRAKING SYSTEM Shimano GRX ST-RX600/BR-RX400 Disc | hydraulic | flatmount | 160mm
• DRIVE SYSTEM Shimano GRX RD-812 1-11-F derailleur long | Garbaruk Narrow Wide chainring | KMC X11SL chain
• CRANKSET Urwahn CT1-CR1 | 160 or 170mm | hollowcore | LK 5x130 | BSA
• BOTTOM BRACKET Acros A-BB R2 | hollowcore | BSA
• HUB SET Urwahn front Disc 6h 12x100mm | Urwahn rear Disc 6h 12x135mm
• RIMS DT Swiss 481DB | 32 holes | 22-622mm

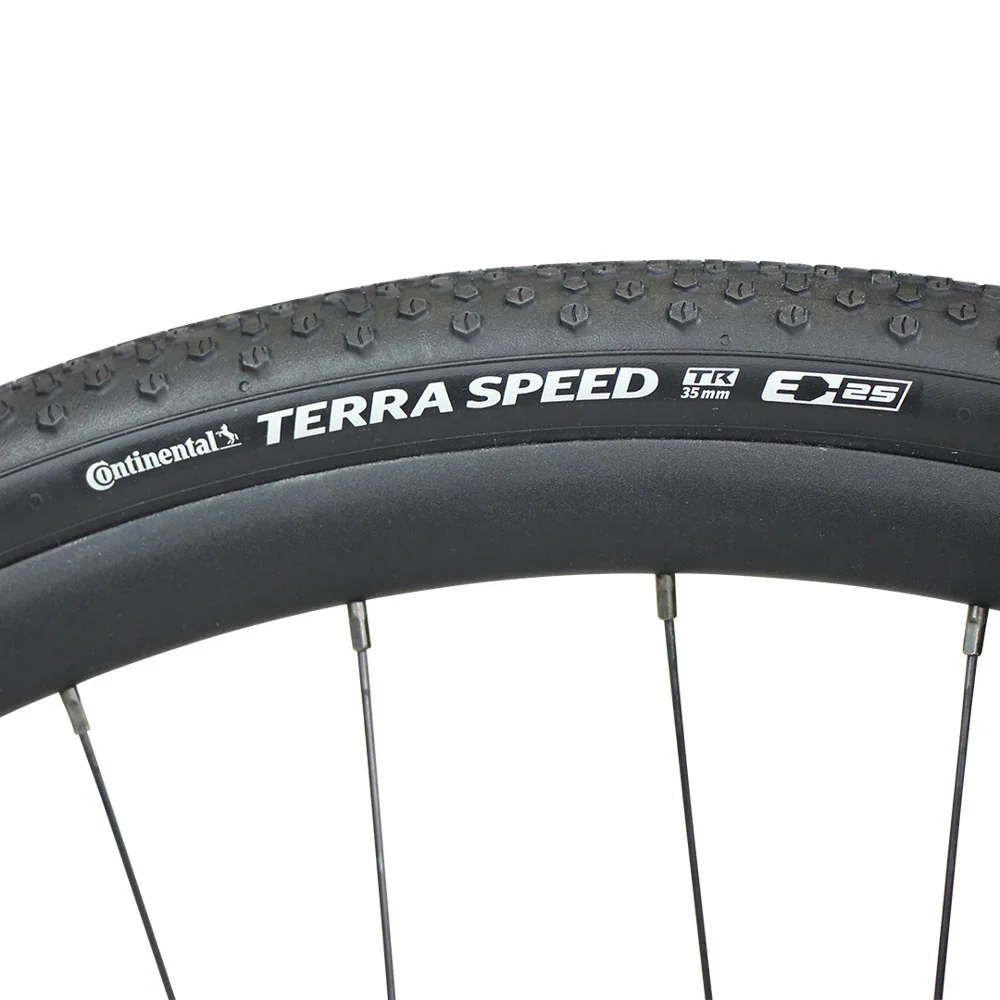

• TIRES Continental Terra Speed | 40-622mm
• HANDLEBAR Acros Gravel-Bar | 440mm - 560mm | 25° flare
• STEM Satori Viper with Acros ICR | 31.8mm
• GRIPS Acros Silicon Bartape
• SEAT POST Urwahn CT1-SP1 | 27.2mm
• SEAT Fizik Terra Argo X3 | 160mm | Rail Kium Mobius
• FRAME SIZES XS | S | M | L | XL
• FRAME COLOURS asphalt | concrete I oxid I cobalt | gold
• WEIGHT approx. 10,9 kg (Size M)
